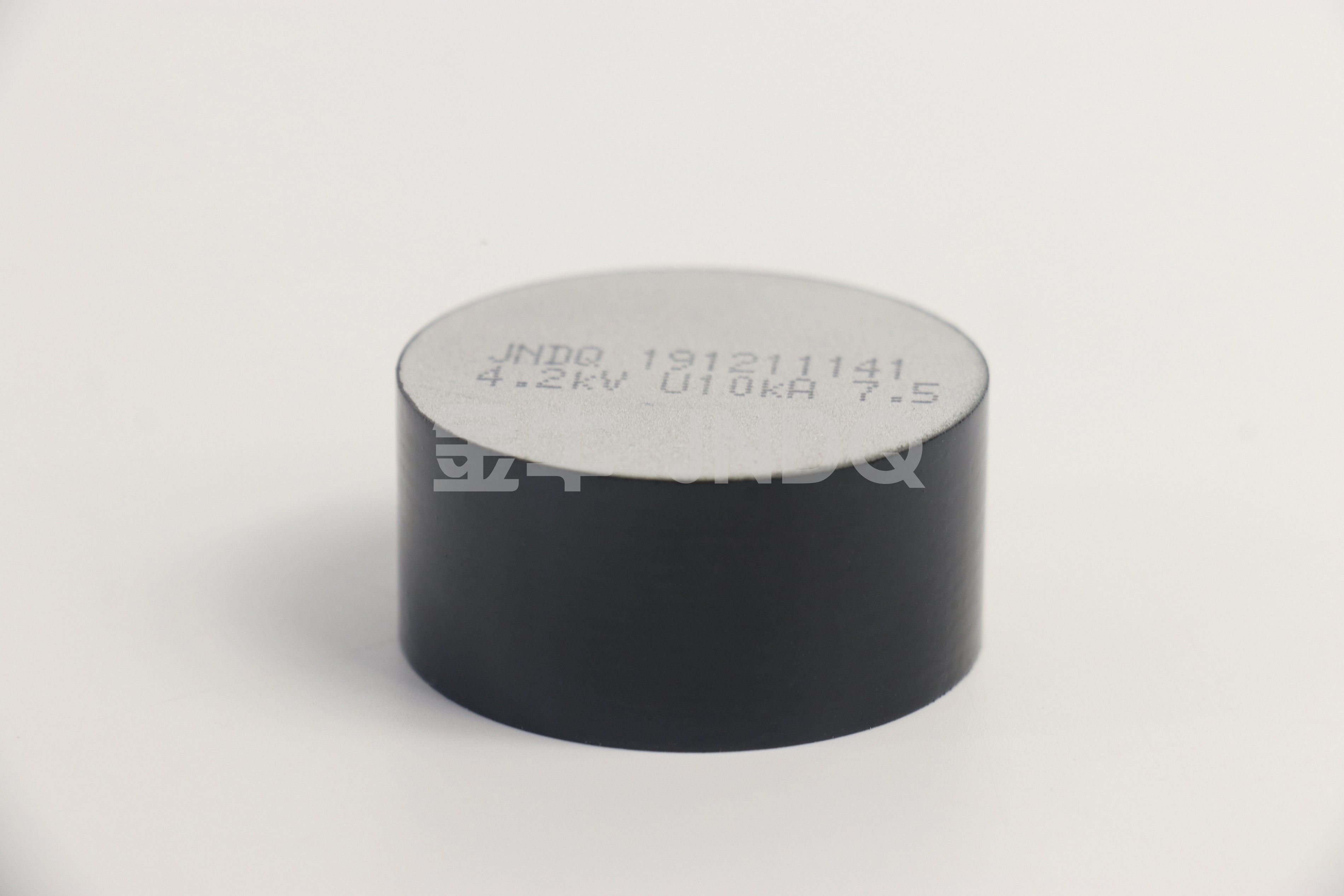

10KA電阻片

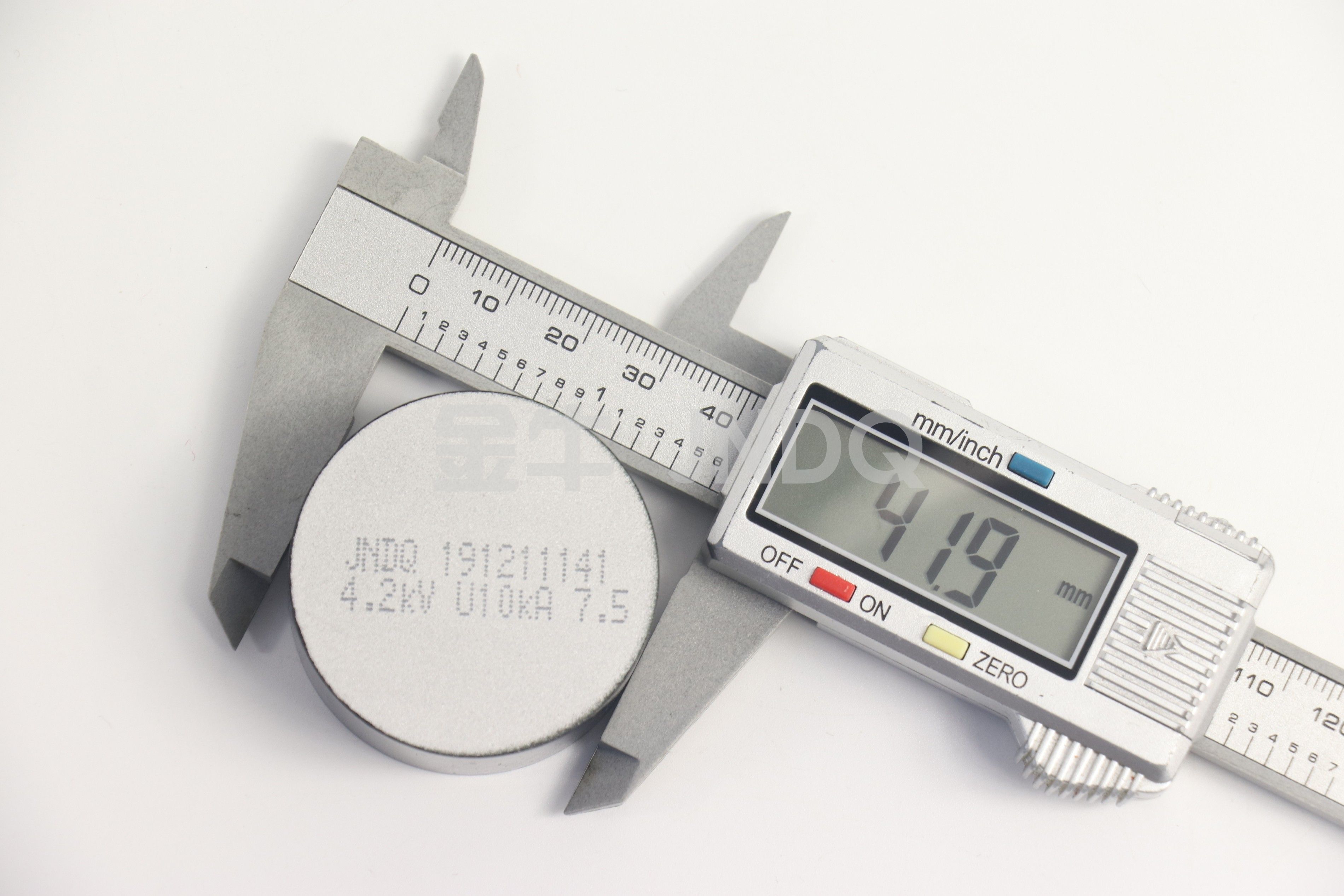

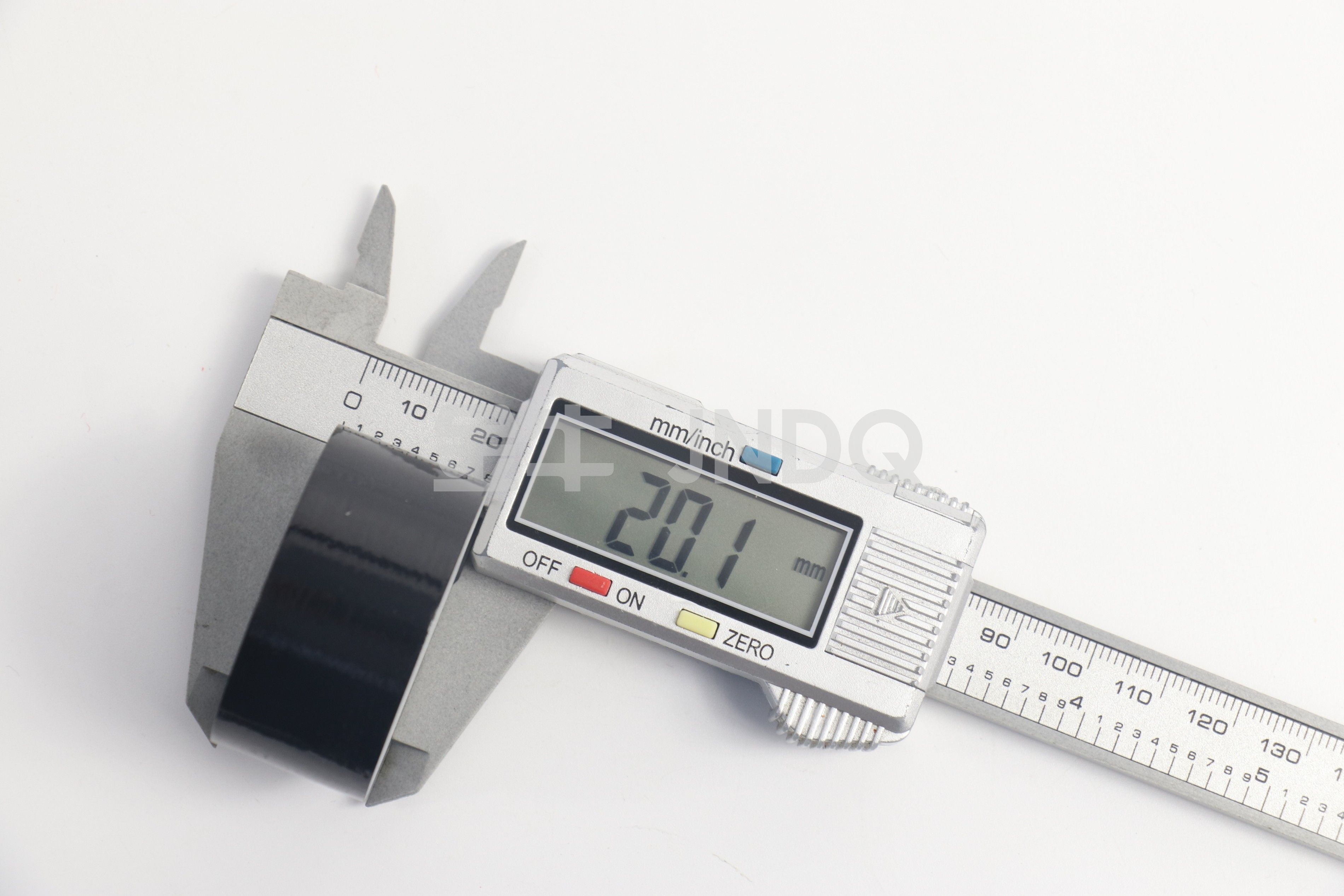

D42*H20
產品描述
Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Leakage current under 75%U1mA | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Recommended continuous operating voltage | |
4/10us | 2ms | ||||||||
mm | mm | kV | uA | at 10kA | kA | A | kV | kV | |
MOV42×20 | 42±0.5 | 20±0.5 | 4.0-4.8 | <10 | 1.77 | 100 | 400 | 3 | 2.4 |
MOV42×24 | 42±0.5 | 24±0.5 | 5.0-5.8 | <10 | 1.77 | 100 | 400 | 3.6 | 2.88 |
MOV42×30 | 42±0.5 | 30±0.5 | 6.2-7.0 | <10 | 1.77 | 100 | 400 | 4.5 | 3.6 |
產品特點:
2臺噴霧造粒機
40米國內最長窯爐
認證:Iso9001&14001&CQC等
細致全鋁面電極
超強過電壓和大電流耐受能力
泄漏電流小(持續運行電壓下)
優質非線性特性
遵循GB/IEC/IEEE等標準
電阻片可靈活串連
電阻片100%全面老化
